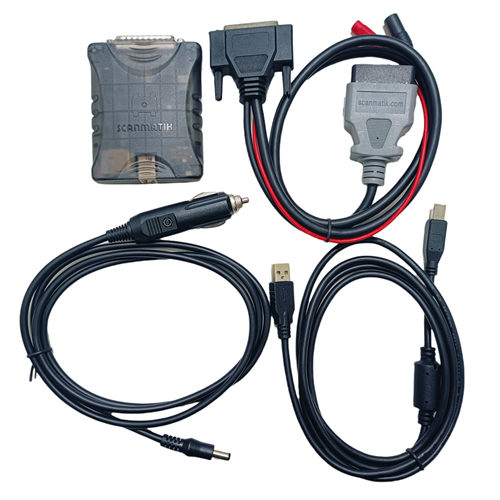

Scanmatik 3 PRO

Scanmatik 3 PRO

Professional multi-brand auto scanner is designed for diagnostics of electronic control systems of modern cars. Works with a PC, tablet or smartphone, programs for Windows and Android included. When installing the driver (included in the kit), it works with third-party diagnostic software made for SAE J2534 and RP1210 standards, as well as with bootloaders, supplying programming permission voltages to various contacts of the diagnostic connector.

To connect to the adapter, you can use either USB or Wi-Fi interfaces (built into the SM3 adapter)

All kits include the full current version of the program (all currently available software modules):
VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.

Works with a large number of diagnostic programs and loaders made for standard SAE J2534 and RP1210 interfaces.
Technical characteristics of the SM3 adapter

    Interfaces for communication with a PC (Tablet, Smartphone) — USB or Wi-Fi
    Supply voltage: 5…35V from the vehicle’s on-board network or USB (galvanic isolation with power supply)
    Current consumption, no more than 350mA
    Internal pulse power supplies of our own design (no heating + wide range of input voltages from 5 to 55V)
    Wi-Fi transceiver standard: IEEE 802.11b/g/n
    Supported data buses:
        13 x ISO-9141/ISO-14230 (K-LINE)
        1 x J1850VPW
        1 x J1850PWM
        4 x CAN 2.0/CAN-FD
        1 x Single Wire CAN
        1 x Ethernet 10/100BASE-TX
    Built-in multiplexer for switching diagnostic lines
    The widest support for J2534-½ standards
    Programming voltage supply (5-20V) — to OBD2 connector pins: 6, 8, 9, 11, 12, 13, 14
    AUX programming voltage output
